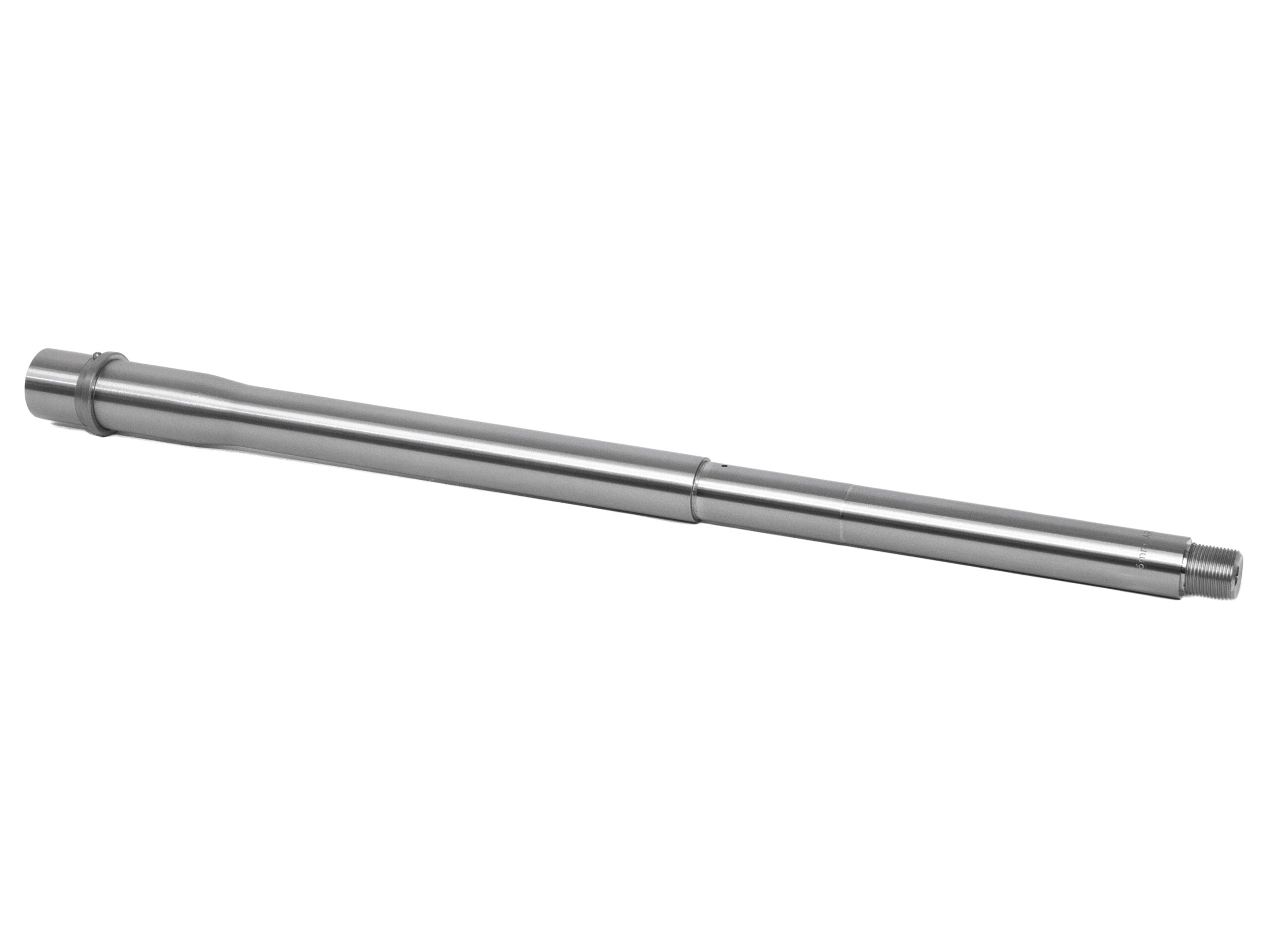

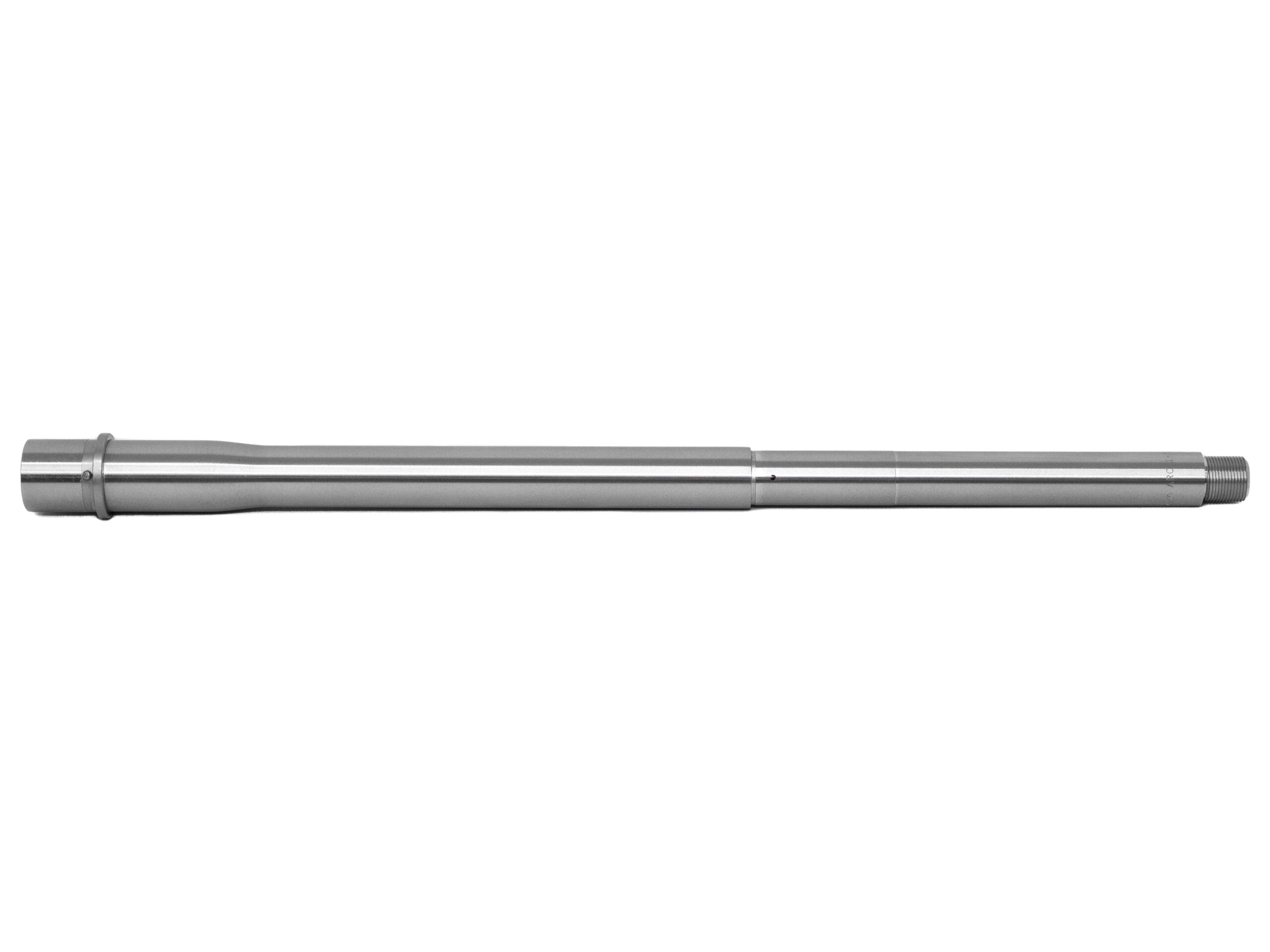

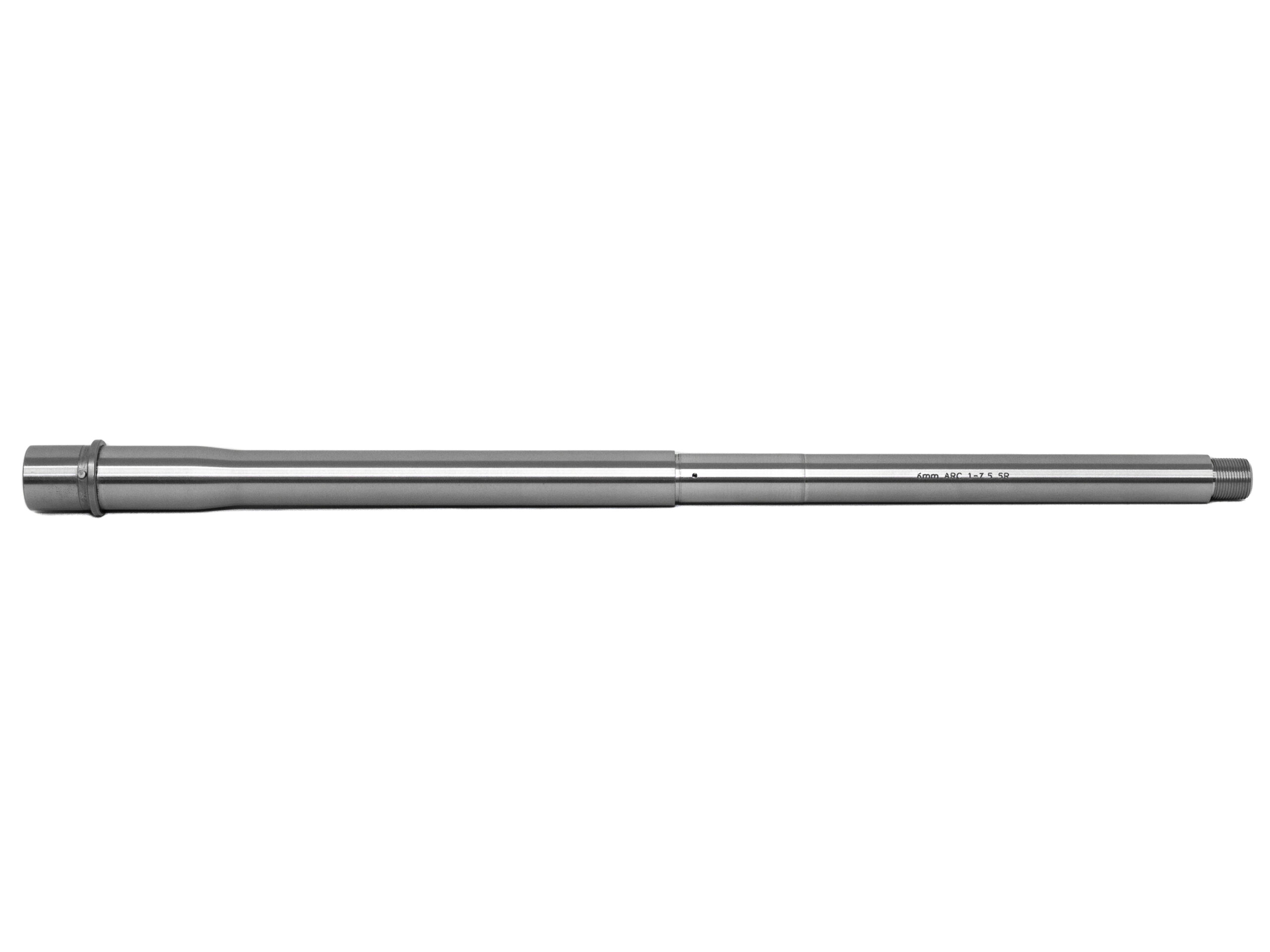

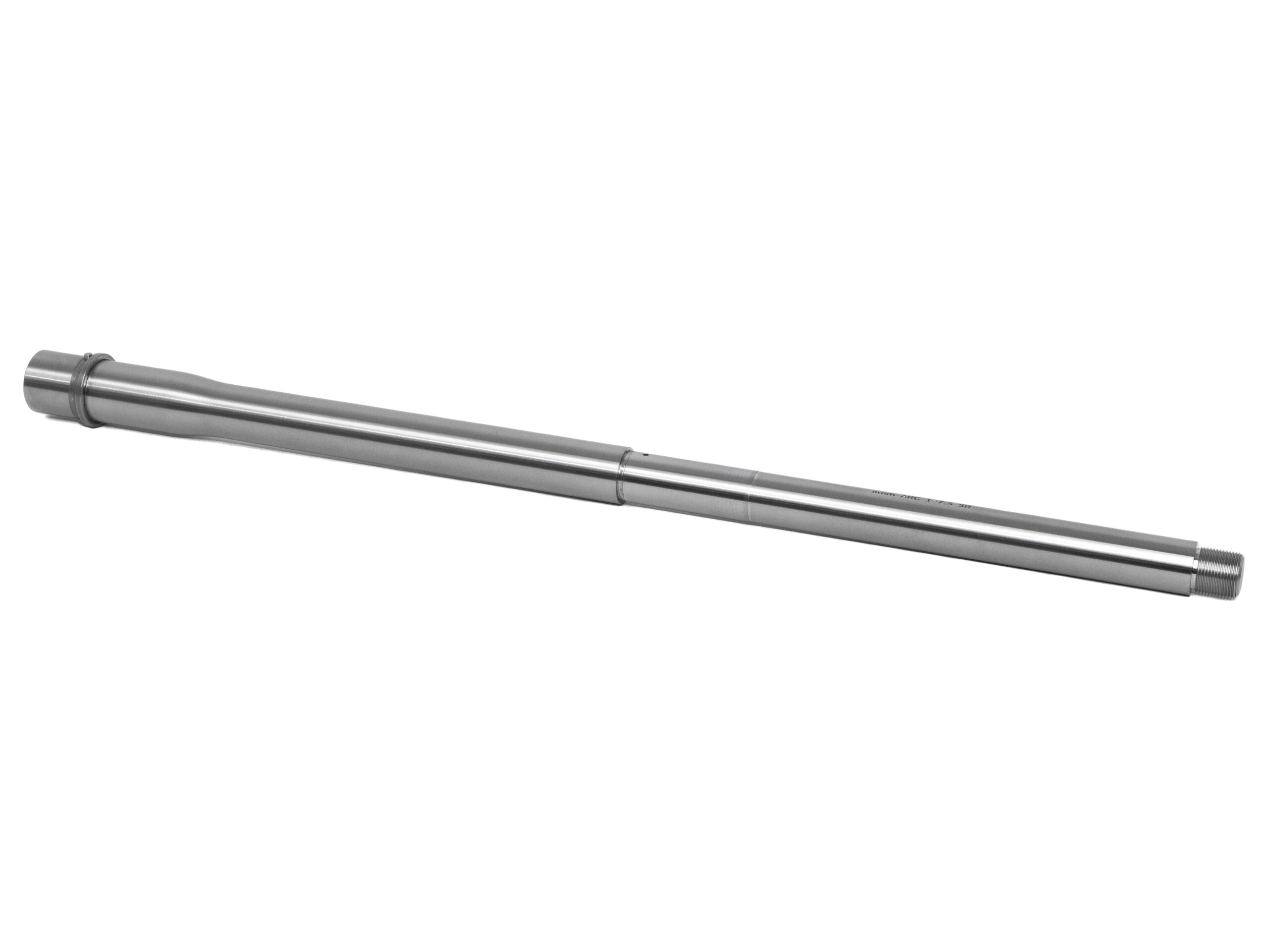

6mm ARC Barrels – Stainless

Price range: $249.00 through $309.00

Choose Your 6mm ARC Barrel With the Options Below

Bundle & SAVE!

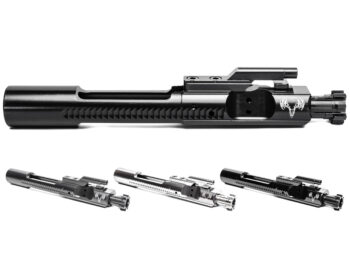

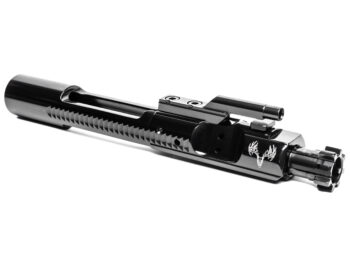

Add Discounted Bolt Carrier Group with Headspaced Bolt

16'' 6mm ARC Barrel Stainless + Grendel Hunter 6.5 Grendel / 6mm ARC / .22 ARC Bolt Carrier Group - DLC (Diamond Like Carbon)
BUNDLE PRICE!: Original price was: $408.99.Current price is: $388.99. Save $20.00
  • Liberty Barrels® made by Satern®
    • 6mm ARC
    • 416R Stainless Steel
    • Medium Contour
    • 1-7.5 Twist 5R Rifling
    • Mid (16″ & 18″) and Rifle (18″, 20″ & 22″) Length Gas
    • 5/8×24 Threads
    • .750 Gas Block Journal

6mm ARC Ballistics Data

All of the data below was gathered by Grendel Hunter staff shooting the various loads in 10+ round strings through a chronograph. The data was then entered into a ballistics calculator to provide us with velocities, energy and trajectories at various ranges. For our calculations we used the following conditions:

Temperature: 59 ℉ | Humidity: 50% | Barometric Pressure: 29.9 inHg | Altitude 1,000 FT
70gr Sierra Tipped Varmint King (G1 B.C. .299)
6mm ARC | Velocity, Energy & Trajectory Chart (22″ Barrel)
Range (Yds)Velocity (FPS)Energy (Ft-Lbs)Drop (Inches)
0 (Muzzle)31781570-2.7
100284612590.0
20025391001-1.7
3002252788-8.7
4001984612-22.7
5001737469-45.5
6001514356-79.9
7001323272-129.5

Note: Data calculated with a 100-yard zero, 2.65″ scope height, and environmental parameters of 59°F, 50% humidity, and 1,000 FT altitude.

Ballistic trajectory line graph showing the smooth bullet path and drop in inches for a 70 grain Varmint King bullet from 0 to 700 yards with a 100-yard zero.
Line chart mapping the velocity degradation in feet per second for a 70 grain Varmint King projectile tracked across 100-yard increments out to 700 yards.
Ballistic data chart displaying the kinetic energy retention and downrange impact force in foot-pounds for a 70gr Varmint King bullet.
75gr V-MAX (G1 B.C. .330) 6mm ARC | Velocity, Energy & Trajectory Chart (22″ Barrel)
Range (Yds) Velocity (FPS) Energy (Ft-Lbs) Drop (Inches)
0 (Muzzle) 3001 1500 -2.7
100 2711 1224 0.0
200 2440 991 -2.1
300 2185 795 -10.0
400 1946 630 -25.3
500 1724 495 -49.7
600 1523 386 -85.9
700 1346 302 -137.1
800 1201 240 -207.6
900 1091 198 -302.0
1000 1013 171 -425.4

Note: Data calculated with a 100-yard zero, 2.65″ scope height, and environmental parameters of 59°F, 50% humidity, and 1,000 FT altitude.

Ballistic trajectory line graph showing the arced bullet flight path and drop values in inches for a 75 grain Hornady V-Max projectile out to 700 yards.
Line chart tracking the downrange velocity degradation in feet per second (FPS) for a 75gr Hornady V-Max bullet from muzzle to 700 yards.
Ballistic performance graph illustrating downrange kinetic energy retention in foot-pounds (FT-LBS) for a 75 grain Hornady V-Max varmint bullet.
80gr Hornady ELD-VT (G1 B.C. .410) 6mm ARC | Velocity, Energy & Trajectory Chart (22″ Barrel)
Range (Yds) Velocity (FPS) Energy (Ft-Lbs) Drop (Inches)
0 (Muzzle) 2964 1560 -2.7
100 2731 1325 0.0
200 2511 1120 -2.0
300 2301 940 -9.5
400 2101 784 -23.7
500 1912 649 -45.7
600 1734 534 -77.2
700 1569 437 -120.3
800 1420 358 -177.5
900 1289 295 -251.9
1000 1179 247 -347.3

Note: Data calculated with a 100-yard zero, 2.65″ scope height, and environmental parameters of 59°F, 50% humidity, and 1,000 FT altitude.

Ballistic trajectory line graph showing the arced bullet flight path, zero range, and drop values in inches for a 6mm ARC 80 grain Hornady ELD-VT projectile out to 700 yards.
Line chart tracking the downrange velocity degradation in feet per second (FPS) for a 6mm ARC 80gr Hornady ELD-VT bullet from muzzle to 700 yards.
Ballistic performance graph illustrating downrange kinetic energy retention in foot-pounds (FT-LBS) for the 6mm ARC 80 grain Hornady ELD-VT target and varmint bullet.
103gr Hornady ELD-X (G1 B.C. .512) 6mm ARC | Velocity, Energy & Trajectory Chart (22″ Barrel)
Range (Yds) Velocity (FPS) Energy (Ft-Lbs) Drop (Inches)
0 (Muzzle) 2698 1665 -2.7
100 2522 1454 0.0
200 2352 1265 -2.8
300 2190 1096 -11.9
400 2033 945 -28.3
500 1884 812 -53.0
600 1742 694 -87.6
700 1609 592 -133.6
800 1484 504 -193.0
900 1371 430 -268.3
1000 1271 369 -361.9

Note: Data calculated with a 100-yard zero, 2.65″ scope height, and environmental parameters of 59°F, 50% humidity, and 1,000 FT altitude.

Ballistic trajectory line graph tracking the downrange flight path and bullet drop in inches for a heavy 103 grain Hornady ELD-X projectile fired from a 22-inch barrel 6mm ARC rifle out to 700 yards.
Line chart mapping the downrange velocity retention in feet per second (FPS) for a 6mm ARC 103gr Hornady ELD-X bullet out of a 22" barrel starting at 2698 FPS muzzle velocity.
58gr Hornady V-MAX (G1 B.C. .250)
6mm ARC | Velocity, Energy & Trajectory Chart (18″ Barrel)
Range (Yds)Velocity (FPS)Energy (Ft-Lbs)Drop (Inches)
0 (Muzzle)33311429-2.7
100292311000.0
2002552838-1.4
3002210629-8.2
4001895462-22.2
5001612335-45.9
6001369241-83.1
7001178179-138.8
8001048142-219.4
900963119-331.1
1000899104-479.7

Note: Data calculated with a 100-yard zero, 2.65″ scope height, and environmental parameters of 59°F, 50% humidity, and 1,000 FT altitude.

Ballistic trajectory line graph tracking the high-velocity flight path and downrange bullet drop in inches out to 700 yards for a 58 grain Hornady V-Max bullet fired from an 18-inch barrel 6mm ARC rifle.
Line chart mapping downrange velocity retention in feet per second (FPS) across 700 yards for a 6mm ARC 58gr Hornady V-Max varmint projectile with a 3,331 FPS muzzle velocity out of an 18" barrel.
Ballistic performance graph illustrating downrange kinetic energy retention in foot-pounds (FT-LBS) from muzzle out to 700 yards for a 58 grain Hornady V-Max projectile shot from an 18-inch barrel 6mm ARC at 3,331 FPS.
65gr Maker T-Rex (G1 B.C. .330)
6mm ARC | Velocity, Energy & Trajectory Chart (18″ Barrel)
Range (Yds)Velocity (FPS)Energy (Ft-Lbs)Drop (Inches)
0 (Muzzle)32461520-2.7
100293912470.0
20026541016-1.4
3002386822-7.7
4002134657-20.2
5001898520-40.2
6001681408-70.0
7001484318-112.1
8001313249-170.0
9001175199-248.1
10001072166-351.1

Note: Data calculated with a 100-yard zero, 2.65″ scope height, and environmental parameters of 59°F, 50% humidity, and 1,000 FT altitude.

Ballistic trajectory line graph mapping the arced flight path and drop in inches for a 6mm 65 grain Maker T-Rex solid copper bullet out to 700 yards.
Line chart tracking downrange velocity degradation in feet per second (FPS) for a 65gr Maker T-Rex bullet starting at a muzzle velocity of 3246 FPS.
Ballistic performance graph showing kinetic energy retention and impact force in foot-pounds (FT-LBS) for the 6mm 65 grain Maker T-Rex expanding solid projectile.
70gr Sierra Tipped Varmint King (G1 B.C. .299)
6mm ARC | Velocity, Energy & Trajectory Chart (18″ Barrel)
Range (Yds)Velocity (FPS)Energy (Ft-Lbs)Drop (Inches)
0 (Muzzle)30891483-2.7
100276411870.0
2002462942-1.9
3002180739-9.6
4001917571-24.6
5001676437-49.1
6001461332-86.0
7001279254-139.3
8001137201-213.8
9001038167-315.0
1000967145-448.1

Note: Data calculated with a 100-yard zero, 2.65″ scope height, and environmental parameters of 59°F, 50% humidity, and 1,000 FT altitude.

Ballistic trajectory line graph showing the arced flight path and downrange bullet drop in inches for a 70 grain Varmint King projectile fired from an 18-inch barrel 6mm ARC rifle out to 700 yards.
Line chart tracking downrange velocity degradation in feet per second (FPS) for a 6mm ARC 70gr Varmint King bullet starting at a 3089 FPS muzzle velocity out of an 18" barrel.
Ballistic performance graph illustrating impact force and kinetic energy retention in foot-pounds (FT-LBS) for a 70 grain Varmint King bullet out of an 18-inch barrel 6mm ARC.
75gr Hornady V-MAX (G1 B.C. .330)
6mm ARC | Velocity, Energy & Trajectory Chart (18″ Barrel)
Range (Yds)Velocity (FPS)Energy (Ft-Lbs)Drop (Inches)
0 (Muzzle)29161416-2.7
100263211540.0
2002366932-2.4
3002115745-11.0
4001881589-27.4
5001664461-53.7
6001469359-92.5
7001301282-147.5
8001166226-223.0
9001066189-324.0
1000994165-455.3

Note: Data calculated with a 100-yard zero, 2.65″ scope height, and environmental parameters of 59°F, 50% humidity, and 1,000 FT altitude.

Ballistic trajectory line graph tracking the downrange flight path curve and drop values in inches for a 75 grain Hornady V-Max bullet fired from an 18-inch barrel 6mm ARC rifle out to 700 yards.
Line chart tracking velocity degradation in feet per second (FPS) across 700 yards for a 6mm ARC 75gr Hornady V-Max bullet starting at a 2916 FPS muzzle velocity out of an 18" barrel.
Ballistic performance graph showing kinetic energy retention in foot-pounds (FT-LBS) from muzzle out to 700 yards for a 75 grain Hornady V-Max projectile shot from an 18-inch barrel 6mm ARC.
85gr Maker T-Rex (G1 B.C. .340)
6mm ARC | Velocity, Energy & Trajectory Chart (18″ Barrel)
Range (Yds)Velocity (FPS)Energy (Ft-Lbs)Drop (Inches)
0 (Muzzle)28211502-2.7
100255112280.0
2002297996-2.7
3002058799-12.0
4001834635-29.6
5001627500-57.5
6001442393-98.6
7001283311-156.4
8001155252-235.3
9001061212-340.1
1000992186-475.6

Note: Data calculated with a 100-yard zero, 2.65″ scope height, and environmental parameters of 59°F, 50% humidity, and 1,000 FT altitude.

Ballistic trajectory line graph tracking the arced flight path and downrange bullet drop in inches for an 85 grain Maker T-Rex solid copper projectile fired from an 18-inch barrel 6mm ARC rifle out to 700 yards.
Line chart tracking downrange velocity degradation in feet per second (FPS) for a 6mm ARC 85gr Maker T-Rex solid copper bullet starting at a 2821 FPS muzzle velocity out of an 18" barrel.
Ballistic performance graph illustrating impact force and kinetic energy retention in foot-pounds (FT-LBS) for an 85 grain Maker T-Rex monolithic bullet shot from an 18-inch barrel 6mm ARC out to 700 yards.
90gr Hornady ELD-X (G1 B.C. .409)
6mm ARC | Velocity, Energy & Trajectory Chart (18″ Barrel)
Range (Yds)Velocity (FPS)Energy (Ft-Lbs)Drop (Inches)
0 (Muzzle)26891445-2.7
100247012190.0
20022611022-3.1
3002063851-12.9
4001876703-31.0
5001700577-58.9
6001538472-98.9
7001392387-153.6
8001264319-226.2
9001159268-320.6
10001078232-440.7

Note: Data calculated with a 100-yard zero, 2.65″ scope height, and environmental parameters of 59°F, 50% humidity, and 1,000 FT altitude.

Ballistic trajectory line graph tracking the downrange flight path and bullet drop in inches out to 700 yards for a mid-weight 90 grain Hornady ELD-X projectile fired from an 18-inch barrel 6mm ARC rifle.
Line chart mapping downrange velocity retention in feet per second (FPS) across 700 yards for a 6mm ARC 90gr Hornady ELD-X bullet out of an 18-inch barrel starting at 2689 FPS muzzle velocity.
Ballistic performance graph illustrating downrange kinetic energy retention in foot-pounds (FT-LBS) out to 700 yards for a 90 grain Hornady ELD-X hunting bullet shot from an 18" barrel 6mm ARC.
103gr Hornady ELD-X (G1 B.C. .512)
6mm ARC | Velocity, Energy & Trajectory Chart (18″ Barrel)
Range (Yds)Velocity (FPS)Energy (Ft-Lbs)Drop (Inches)
0 (Muzzle)25881532-2.7
100241613350.0
20022511158-3.3
30020921001-13.5
4001940861-31.6
5001795737-59.0
6001658629-97.1
7001531536-147.9
8001413457-213.5
9001307391-296.5
10001215338-399.8

Note: Data calculated with a 100-yard zero, 2.65″ scope height, and environmental parameters of 59°F, 50% humidity, and 1,000 FT altitude.

Ballistic trajectory line graph tracking the downrange flight path and bullet drop in inches out to 700 yards for a heavy 103 grain Hornady ELD-X projectile fired from an 18-inch barrel 6mm ARC rifle.
Line chart mapping downrange velocity retention in feet per second (FPS) for a 6mm ARC 103gr Hornady ELD-X bullet out of an 18-inch rifle barrel with a 2588 FPS muzzle velocity.
Ballistic performance graph illustrating downrange kinetic energy retention in foot-pounds (FT-LBS) across 700 yards for a 103 grain Hornady ELD-X hunting bullet shot from an 18" barrel 6mm ARC.

View our black Cerakote 6mm ARC barrels here

Additional information

Weight N/A
Dimensions N/A
Add a review

Your email address will not be published. Required fields are marked *

18 reviews for 6mm ARC Barrels – Stainless

  1. Larami (verified owner) –

    Put several hundred rounds through this barrel already, ranging from 80gr-112gr factory loads and handloads. Everything was sub moa, 200 yard sight in even with 15-20mph crosswind. Insanely accurate barrel

  2. Larami (verified owner) –

    Put several hundred rounds through this barrel matched with Grendel hunter bolt, ranging from 80gr-112gr factory loads and handloads. Everything was sub moa, 200 yard sight in even with 15-20mph crosswind. Insanely accurate barrel

  3. erkoenig (verified owner) –

    I have not shot it yet. But the service i have received has already garnered my future business. After sending a question by email I got a very quick response that was extremely helpful and courteous. Thank you, Andy H.
    The barrel is nice. Love the bead blast finish is exceptional. With that said, fit and finish is GREAT. Upon assembly, i cleaned the barrel as a precaution and it was already in good shape. No manufacturing debris or excessive oil present. I have a great feeling about the product and intend to be a repeat customer.
