.22 ARC Ballistics - Druid Hill Armory | 55gr Sierra TVK | 55gr Hornady SP | 60gr Hornady V-MAX
Caliber: .22 ARC |Â Barrel Length: 20″
Bullet: Sierra 55gr TVK (.271 B.C.) | Muzzle Velocity: 3,386 FPS | Muzzle Energy: 1,400 FT/LB | S.D. 8 FPSÂ
Bullet: Hornady 55gr SP (.235 B.C.) | Muzzle Velocity: 3,391 FPS | Muzzle Energy: 1,404 FT/LB | S.D. 13 FPS
Bullet: Hornady 60gr V-MAX (.265 B.C.) | Muzzle Velocity: 3,308 FPS | Muzzle Energy: 1,458 FT/LB | S.D. 19 FPS
Caliber: .22 ARC | Barrel Length: 22″
Bullet: Sierra 55gr TVK (.271 B.C.) | Muzzle Velocity: 3,453 FPS | Muzzle Energy: 1,456 FT/LB | S.D. 16 FPSÂ
Bullet: Hornady 55gr SP (.235 B.C.) | Muzzle Velocity: 3,450 FPS | Muzzle Energy: 1,453 FT/LB | S.D. 19 FPS
Bullet: Hornady 60gr V-MAX (.265 B.C.) | Muzzle Velocity: 3,375 FPS | Muzzle Energy: 1,517 FT/LB | S.D. 14 FPS
Temperature: 59 ℉ | Humidity: 50% | Barometric Pressure: 29.9 inHg | Altitude 1,000 FT
At Grendel Hunter, when we think of the .22 ARC, we think of a dedicated AR-15 varmint rifle. A .22 caliber version of the long popular 6.5 Grendel, it gives us high velocities and low recoil in a semi-automatic platform. When Hornady introduced the caliber at SHOT Show in 2024, we began coyote hunting with it. There are bullets and loads that make it useful for medium size game as well, but let’s face it, the .22 ARC shines brightest at night killing coyotes.
With that purpose in mind, Druid Hill Armory has released three different loads with varmint-style bullets. In this post we’ll share the data we collected firing all three loads out of our personal coyote rifles with 20 and 22 inch barrels. The bottom line? They were fast and they were accurate. If you’re looking for a new varmint load to try in your .22 ARC, give the below data a look over and see if Druid might have what you need.

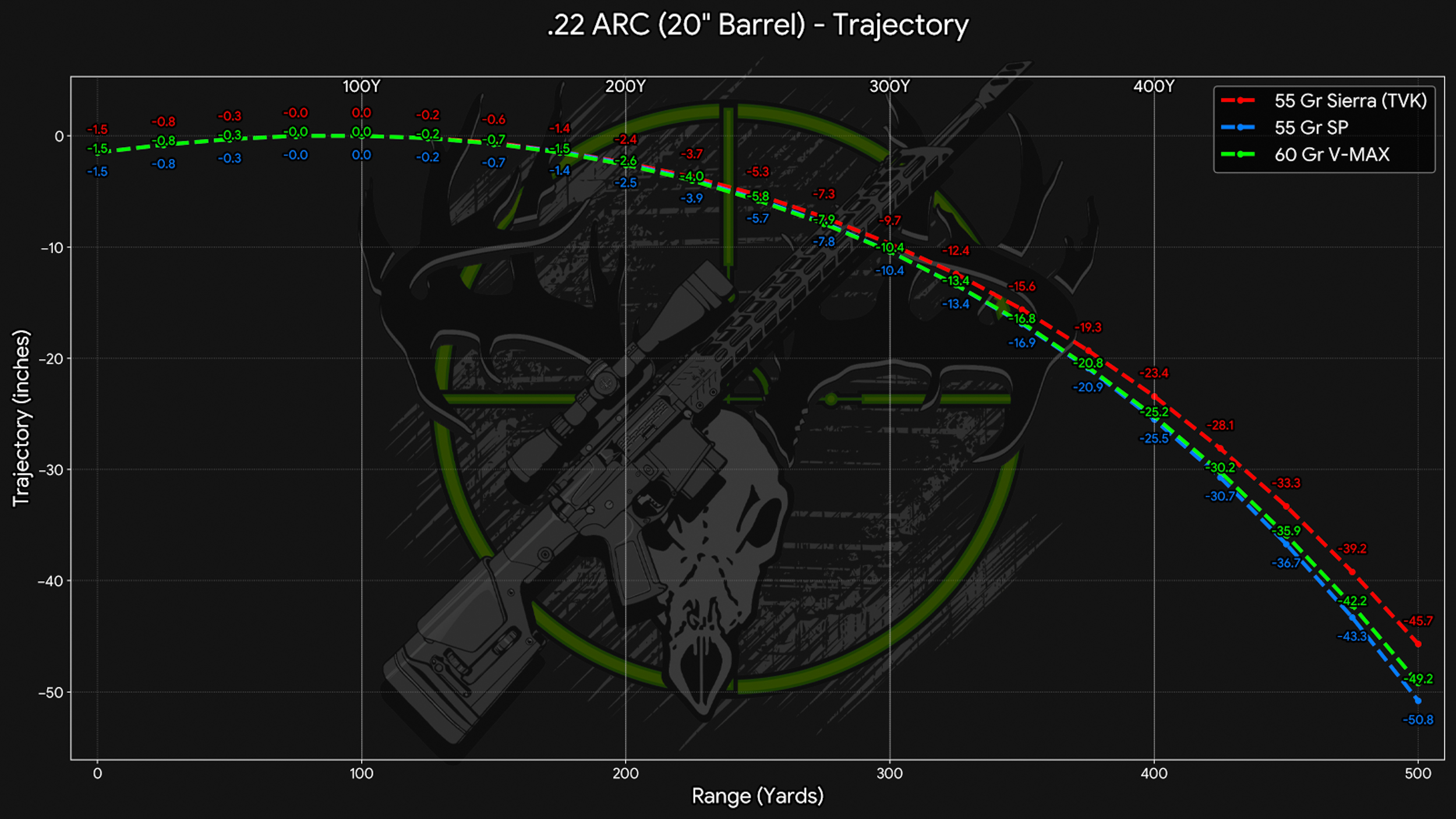

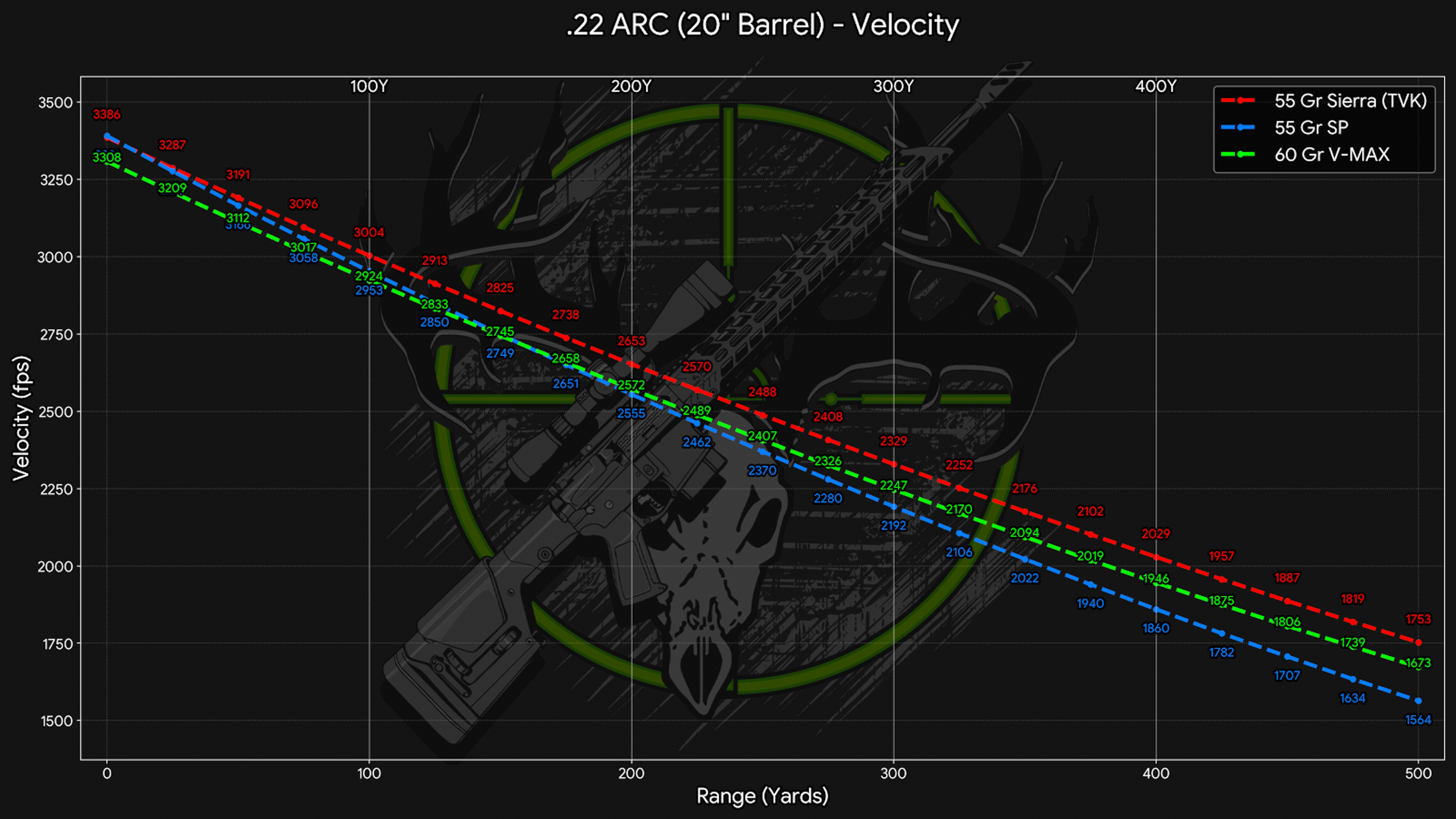

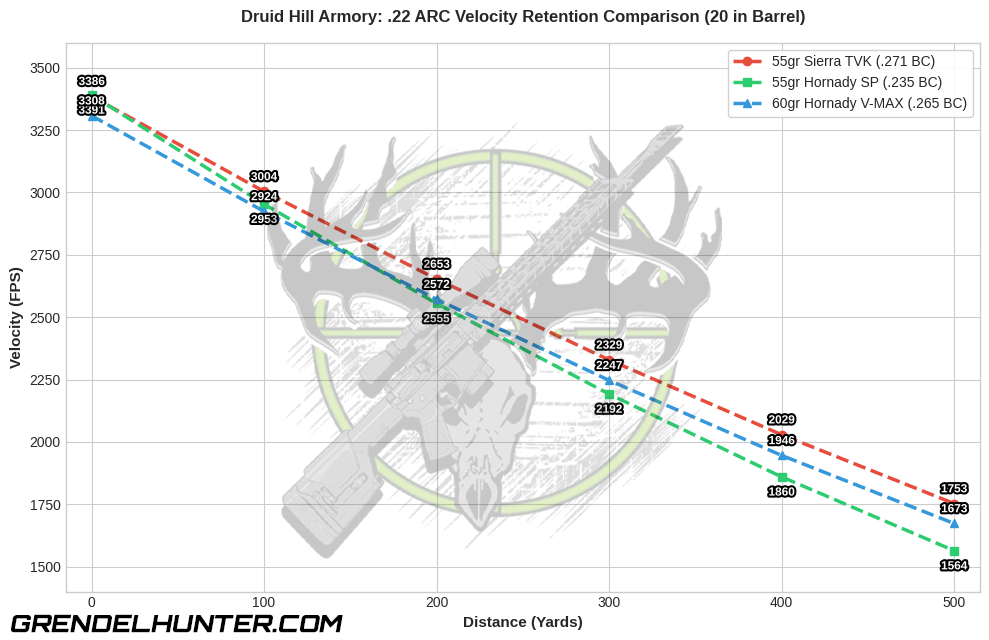

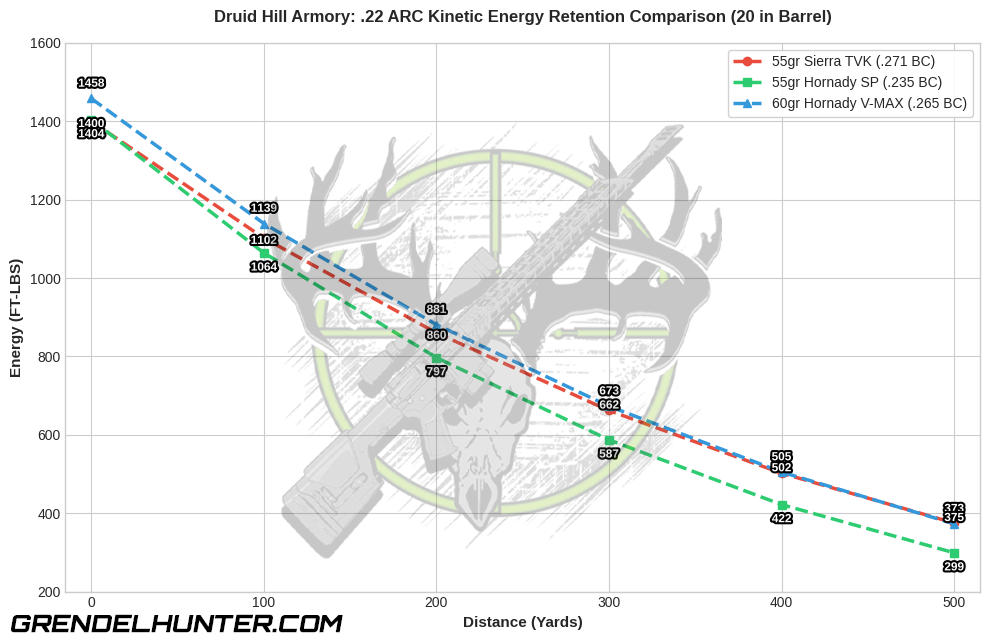

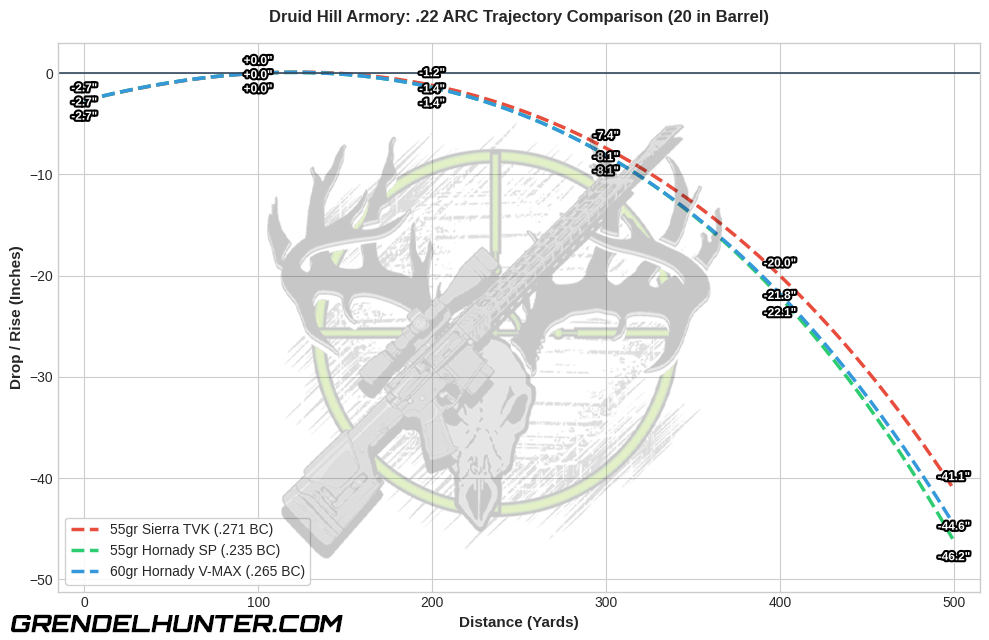

.22 ARC | 20″ Barrel PerformanceÂ
Druid Hill Armory 55gr Sierra TVK (.271 B.C.)
Range (Yards)Â | Velocity (fps)Â | Energy (ft-lb)Â | Trajectory (Inches)Â |
Muzzle | 3386  | 1400  | -1.5  |
100Â | 3004Â Â | 1102Â Â | 0.0Â Â |
200Â | 2653Â Â | 860Â Â | -2.4Â Â |
300Â | 2329Â Â | 662Â Â | -9.7Â |
400Â | 2029Â Â | 502Â Â | -23.4Â Â |
500Â | 1753Â | 375Â Â | -45.7Â Â |
Druid Hill Armory 55gr Hornady SP (.235 B.C.)Â Â
Range (Yards)Â | Velocity (fps)Â | Energy (ft-lb)Â | Trajectory (Inches)Â |
Muzzle | 3391  | 1404  | -1.5  |
100Â | 2953Â Â | 1064Â Â | 0.0Â Â |
200Â | 2555Â Â | 797Â Â | -2.5Â |
300Â | 2192Â Â | 587Â Â | -10.4Â Â |
400Â | 1860Â Â | 422Â Â | -25.5Â Â |
500Â | 1564Â Â | 299Â Â | -50.8Â Â |
Druid Hill Armory 60gr Hornady V-MAX (.265 B.C.)
Range (Yards)Â | Velocity (fps)Â | Energy (ft-lb)Â | Trajectory (Inches)Â |
Muzzle | 3308  | 1458  | -1.5  |
100Â | 2924Â Â | 1139Â Â | 0.0Â Â |
200Â | 2572Â Â | 881Â Â | -2.6Â Â |
300Â | 2247Â Â | 673Â Â | -10.4Â Â |
400Â | 1946Â Â | 505Â Â | -25.2Â Â |
500Â | 1673Â Â | 373Â Â | -49.2Â Â |

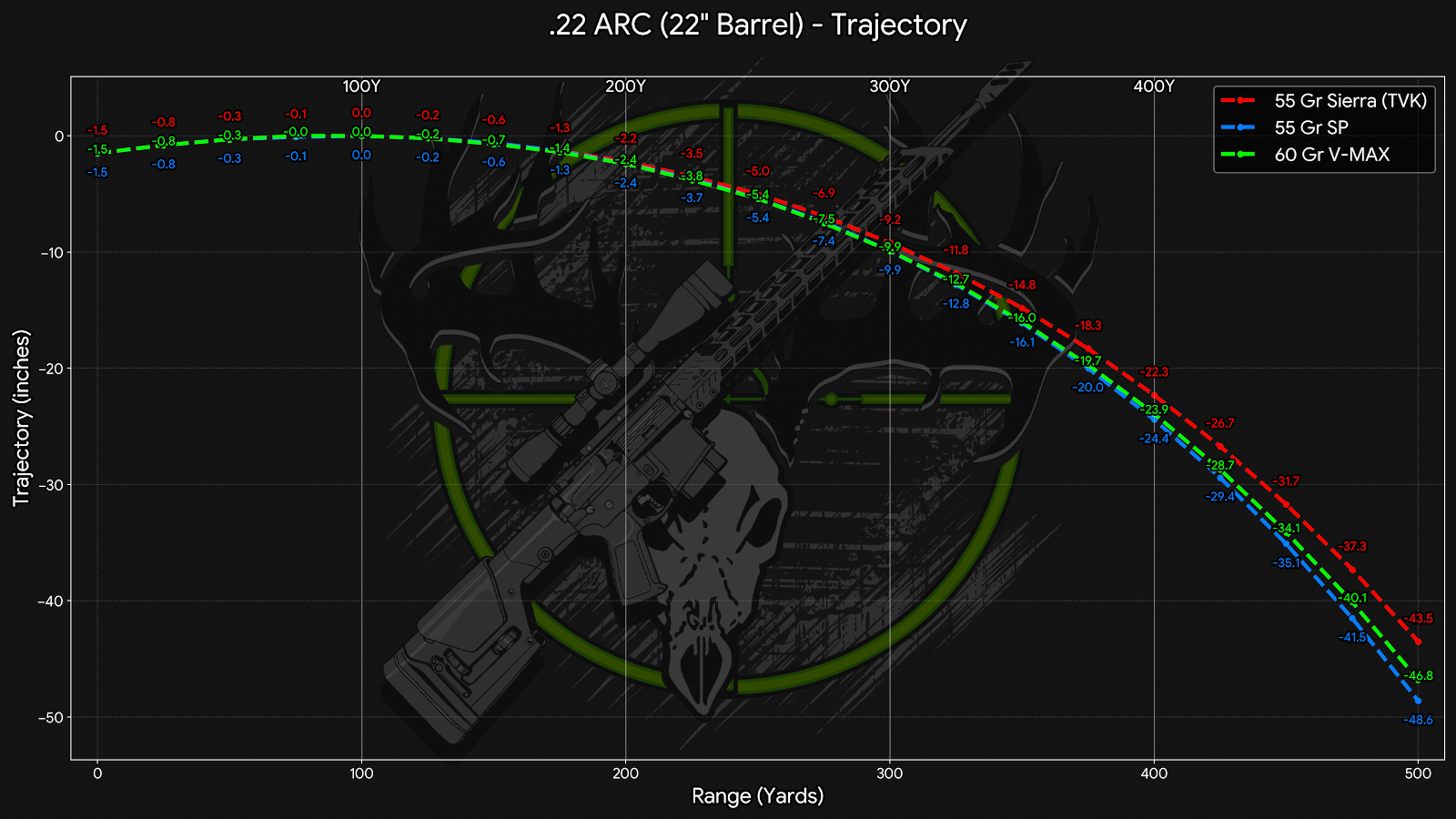

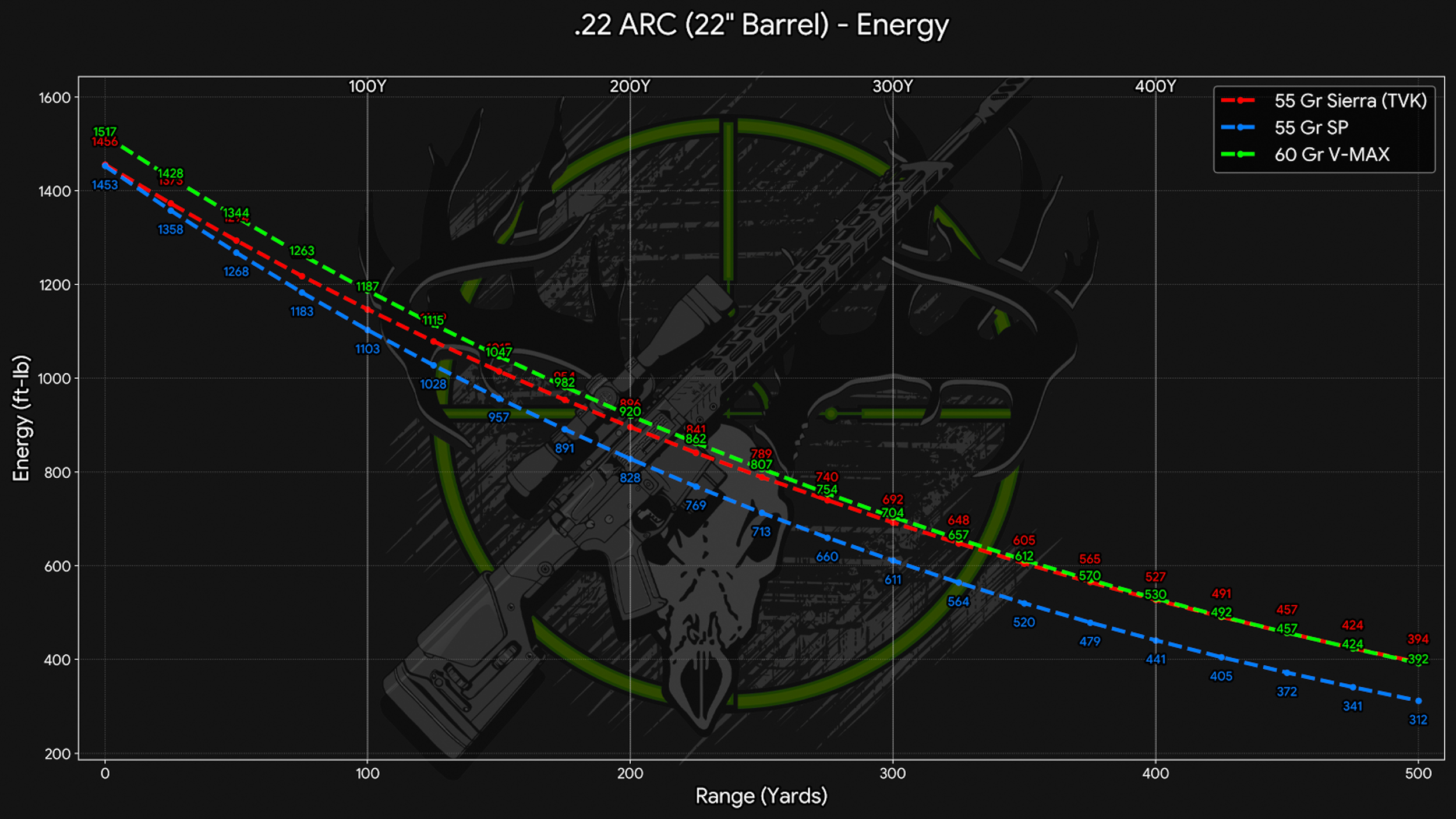

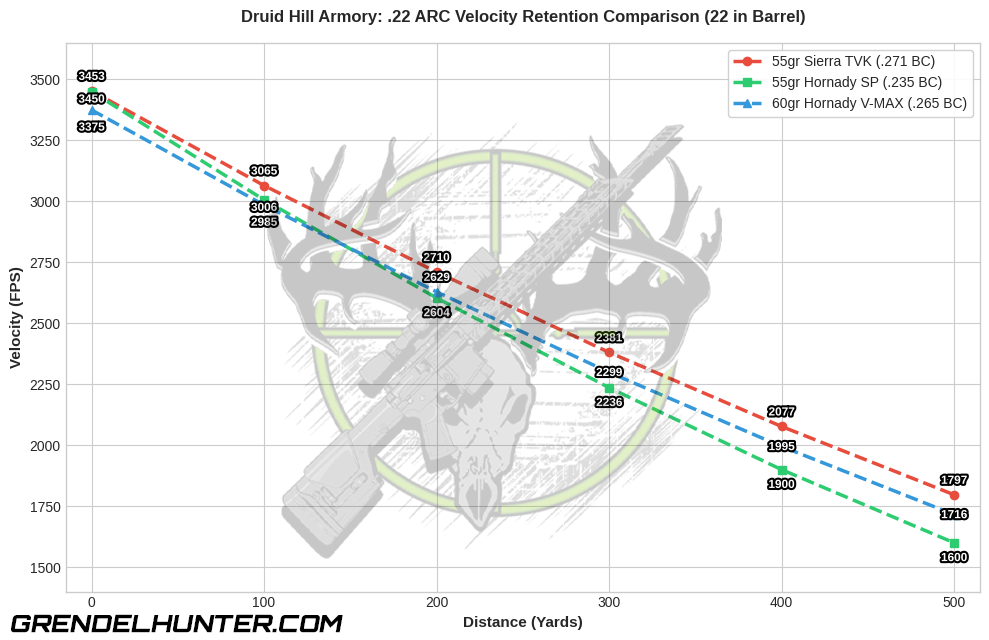

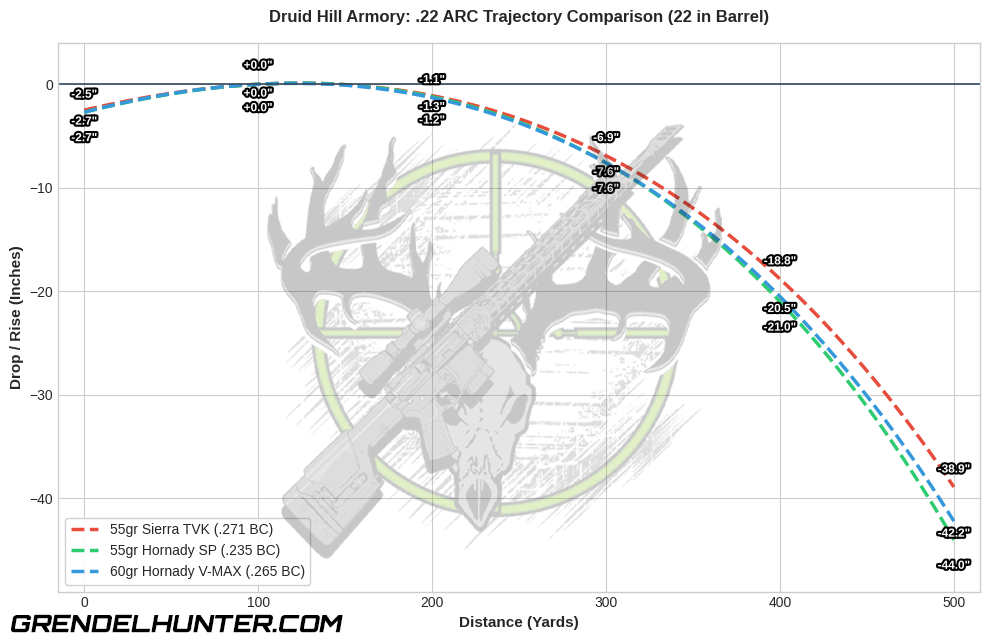

.22 ARC | 22″ Barrel PerformanceÂ
55gr Sierra TVK (.271 B.C.)
Range (Yards)Â | Velocity (fps)Â | Energy (ft-lb)Â | Trajectory (Inches)Â |
Muzzle | 3453  | 1456  | -1.5  |
100Â | 3065Â Â | 1147Â Â | 0.0Â Â |
200Â | 2710Â Â | 896Â Â | -2.2Â Â |
300Â | 2381Â Â | 692Â Â | -9.2Â Â |
400Â | 2077Â Â | 527Â Â | -22.3Â Â |
500Â | 1797Â Â | 394Â Â | -43.5Â Â |
55gr Hornady SP (.235 B.C.)Â Â
Range (Yards)Â | Velocity (fps)Â | Energy (ft-lb)Â | Trajectory (Inches)Â |
Muzzle | 3450  | 1453  | -1.5  |
100Â | 3006Â Â | 1103Â Â | 0.0Â Â |
200Â | 2604Â | 828Â Â | -2.4Â Â |
300Â | 2236Â Â | 611Â Â | -9.9Â Â |
400Â | 1900Â Â | 441Â Â | -24.4Â Â |
500Â | 1600Â Â | 312Â Â | -48.6Â Â |
60gr Hornady V-MAX (.265 B.C.)
Range (Yards)Â | Velocity (fps)Â | Energy (ft-lb)Â | Trajectory (Inches)Â |
Muzzle | 3375  | 1517  | -1.5  |
100Â | 2985Â Â | 1187Â Â | 0.0Â Â |
200Â | 2629Â Â | 920Â Â | -2.4Â Â |
300Â | 2299Â Â | 704Â Â | -9.9Â Â |
400Â | 1995Â Â | 530Â Â | -23.9Â Â |
500Â | 1716Â Â | 392Â Â | -46.8Â |
